1. ODC(Ozone Destructor Catalyst)
Ozone exhaust catalytic bed is made of active manganese dioxide and copper oxide by certain proportion granular catalyst layer, after ozone molecules into the reaction chamber, ozone molecules through micro decompose when heated catalytic bed, negative pressure suction out emissions by centrifugal fan from the catalytic bed.The reaction products are oxygen, carbon dioxide and water, which are widely used in the protection of ozone and gas.(see below picture)
2. Ozone gas VS Catalyst volume ratio
|
NO. |
Catalyst temperature (℃ ) |
Dewpoint ( ℃) |
Ozone gas VS Catalyst volume ratio( m 3 /m3 ) |
|
1 |
18 |
10 |
50000 |
|
2 |
35 |
20 |
250000 |
|
3 |
60 |
25 |
385000 |
|
4 |
80 |
20 |
650000 |
|
5 |
100 |
20 |
607000 |
|
6 |
120 |
5 |
550000 |
3. ODC feature
① Ozone react with catalyst ,it will be easily decomposed into oxygen
② high efficiency and energy saving, low temperature heated with catalyst decompose operating temperature is about 40 to 60 ℃.
③ The outlet blower minimizes the risk of ozone leakage with negative pressure
④ Catalyst ozone destructor has high decomposition rate, long-term stability, safety, economy and other advantages.

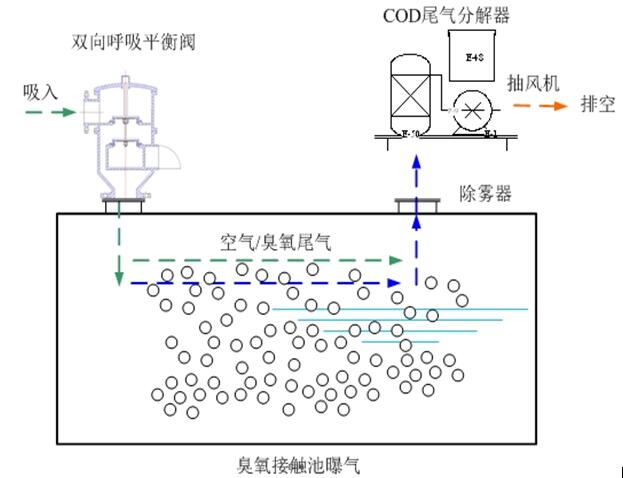

4. Catalyst ozone destructor process flow diagram
5. Catalyst ozone destructor Performance parameters (with heat recovery)
|
Name |
Data |
|
① Media |
Ozone gas |
|
② inlet ozone concentration |
≤1.5%wt |
|
③ outlet ozone concentration |
≤0.1ppm |
|
④ Rated treatment flow |
20～1000Nm3/h |
|
⑤ operation pressure |
≤-0.02MPa |
|
⑥ inlet/outlet gas temperature |
5～35℃/40～60℃ |
|
⑦ Voltage/frequency |
3×380VAC±10% and 220 VAC±10%/50Hz |
|
⑧ control type |
Main PLC control or sole PLC control |
|
⑨ communication |
Data communications control or IO switching volume |
|
⑩ working temperature |
40～80℃ |
|
⑪ Power rate |
0.5～20KW(based on each model) |
|
⑫ Dimension |
mm(based on each model) |
